Tank Mounted TF Filter TF-400*180F-Y TF-630*180F-Y TF-1800*180F-Y TF-1000*180F-Y

Tank Mounted TF Filter TF-400*180F-Y TF-630*180F-Y TF-1800*180F-Y TF-1000*180F-Y

  • High Light

    TF Filter TF-400*180F-Y

    ,

    TF-1000*180F-Y Tank Mounted filter

    ,

    Tank Mounted leemin filter

  • Package
    As Requested
  • Port
    China
  • Guarantee
    3 Months
  • Sample
    Provide Sample
  • After-sales Service
    Online Support
  • Transport Mode
    Sea, Air,Road
  • Appliion Object
    Oil
  • Customization
    Support Customization
  • Filtration Accuracy
    80/100/180μm
  • Place of Origin
    China
  • Brand Name
    KAINUOSEN
  • Model Number
    TF-25*180L-C; TF-40*180L-C; TF-63*180L-C; TF-100*180L-C; TF-160*180L-C; TF-250*180F-C; TF-400*180F-C; TF-630*180F-C; TF-800*180F-C; TF-1000*180F-C; TF-1300*180F-C; TF-25*80L-C; TF-40*80L-C; TF-63*80L-C; TF-100*80L-C; TF-160*80L-C; TF-250*80F-C; TF-400*8
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable
  • Packaging Details
    Carton
  • Delivery Time
    3-15 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 pcs day

Tank Mounted TF Filter TF-400*180F-Y TF-630*180F-Y TF-1800*180F-Y TF-1000*180F-Y

TF suction filter TF-400*180F-Y TF-630*180F-Y TF-1800*180F-Y TF-1000*180F-Y TF-1300*180F-Y Oil filter



TF suction filter:

TF-25*180L-C; TF-40*180L-C; TF-63*180L-C; TF-100*180L-C; TF-160*180L-C; TF-250*180F-C; TF-400*180F-C; TF-630*180F-C; TF-800*180F-C; TF-1000*180F-C; TF-1300*180F-C;



TF-25*80L-C; TF-40*80L-C; TF-63*80L-C; TF-100*80L-C; TF-160*80L-C; TF-250*80F-C; TF-400*80F-C; TF-630*80F-C; TF-800*80F-C; TF-1000*80F-C; TF-1300*80F-C;



TF-25*100L-C; TF-40*100L-C; TF-63*100L-C; TF-100*100L-C; TF-160*100L-C; TF-250*100F-C; TF-400*100F-C; TF-630*100F-C; TF-800*100F-C; TF-1000*100F-C; TF-1300*100F-C;



TF-25*180L-Y; TF-40*180L-Y; TF-63*180L-Y; TF-100*180L-Y; TF-160*180L-Y; TF-250*180F-Y; TF-400*180F-Y; TF-630*180F-Y; TF-800*180F-Y; TF-1000*180F-Y; TF-1300*180F-Y;



TF-25*80L-Y; TF-40*80L-Y; TF-63*80L-Y; TF-100*80L-Y; TF-160*80L-Y; TF-250*80F-Y; TF-400*80F-Y; TF-630*80F-Y; TF-800*80F-Y; TF-1000*80F-Y; TF-1300*80F-Y;



TF-25*100L-Y; TF-40*100L-Y; TF-63*100L-Y; TF-100*100L-Y; TF-160*100L-Y; TF-250*100F-Y; TF-400*100F-Y; TF-630*100F-Y; TF-800*100F-Y; TF-1000*100F-Y; TF-1300*100F-Y;



INTRODUCTION

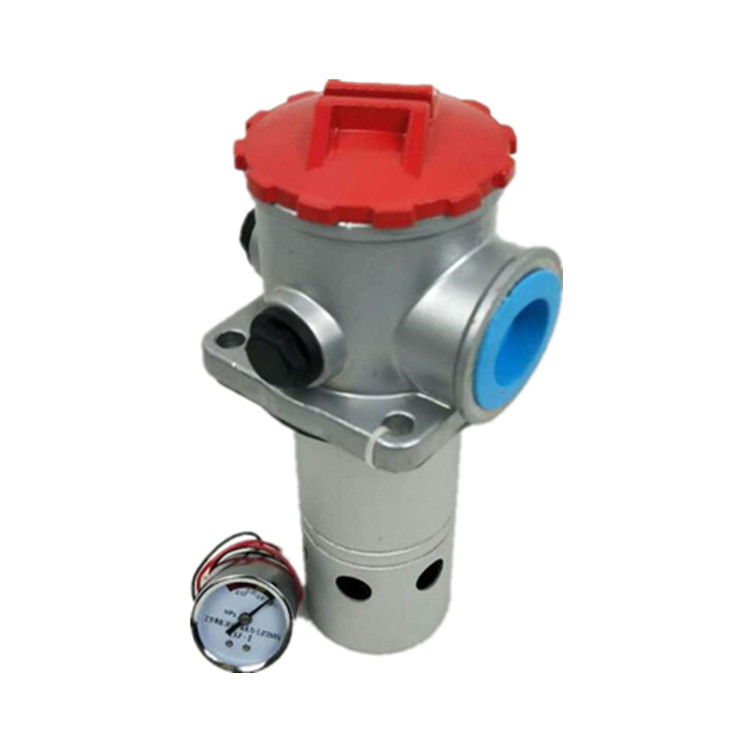

The TF-series filters can be installed on the top, at the side or in the bottom of
the tank. There is a check valve inside the filter, during maintenance, when filter
element is withdrawn for washing, the check valve will close automatically to stop
oil flowing out from the tank.
A vacuum indior in the filter gives signals when the pressure drop across
the element reaches 0.018MPa showing that the filter shall be cleaned. If no
maintenance is done, as the pressure drop rises to 0.02MPa, the by-pass valve will
open to allow oil flowing into pump. This kind of filter can be installed at inlet port of
the pump, in order to protect the pump and other component. This filter can help to
keep hydraulic system clean and easy to use.
Product Information
Material High quality carbon steel;Stainless steel;Glass fiber
Scope of appliion Mines, metallurgy, petroleum, railways, machinery, chemicals, textiles, cement, power plants, meters
End cover material High quality carbon steel;Stainless steel



Tank Mounted TF Filter TF-400*180F-Y TF-630*180F-Y TF-1800*180F-Y TF-1000*180F-Y 0Tank Mounted TF Filter TF-400*180F-Y TF-630*180F-Y TF-1800*180F-Y TF-1000*180F-Y 1



Tank Mounted TF Filter TF-400*180F-Y TF-630*180F-Y TF-1800*180F-Y TF-1000*180F-Y 2Tank Mounted TF Filter TF-400*180F-Y TF-630*180F-Y TF-1800*180F-Y TF-1000*180F-Y 3

Tank Mounted TF Filter TF-400*180F-Y TF-630*180F-Y TF-1800*180F-Y TF-1000*180F-Y 4Tank Mounted TF Filter TF-400*180F-Y TF-630*180F-Y TF-1800*180F-Y TF-1000*180F-Y 5

Tank Mounted TF Filter TF-400*180F-Y TF-630*180F-Y TF-1800*180F-Y TF-1000*180F-Y 6Tank Mounted TF Filter TF-400*180F-Y TF-630*180F-Y TF-1800*180F-Y TF-1000*180F-Y 7

Company Profile


Kainuosen Environmental Technoiogy (Langfang) Co.,Ltd. Founded in 1995,The production base is loed in the North China Industrial Zone.We are loed in the economic coverage areas of Beijing, Tianjin, and Hebei, close to sea ports such as Tianjin Port, Qingdao Port, Weihai Port, and Qinhuangdao Port.It is only 15 kilometers away from Beijing Daxing International Airport, with superior geographical loion and convenient transportation.



Our company is a comprehensive high-tech enterprise integrating R&D, design, production, maintenance, sales and after-sales service. It is based in China and serves the world.



Our company produces all kinds of filter elements, cartridges and filters used in machinery, automobiles, ships, steel mills, power plants, mines, pumps, compressors, air compressors, dust treatment, water treatment, etc.



Products include air filters, oil filters, fuel filters, hydraulic oil filters, oil and gas separation filters, oil-water separation filters, coalescing separation filters, industrial air filters, dust filters, stainless steel filters, vacuum pump filters , Oil filter, concrete mixing plant large pulse dust filter, dust filter cartridge and other types, thousands of different specifiions series of filters, instead of brand filters, and can be customized according to customer requirements, support OME processing and production.



Focus on creating a filter brand and commit to the future of clean industry. We have a large number of technical elites, and we represent quality, focus and integrity. We are a supplier of industrial filtration solutions. We are Kainuoson.



Tank Mounted TF Filter TF-400*180F-Y TF-630*180F-Y TF-1800*180F-Y TF-1000*180F-Y 8

Our Factory


Tank Mounted TF Filter TF-400*180F-Y TF-630*180F-Y TF-1800*180F-Y TF-1000*180F-Y 9Tank Mounted TF Filter TF-400*180F-Y TF-630*180F-Y TF-1800*180F-Y TF-1000*180F-Y 10

Packing & Delivery


Tank Mounted TF Filter TF-400*180F-Y TF-630*180F-Y TF-1800*180F-Y TF-1000*180F-Y 11Tank Mounted TF Filter TF-400*180F-Y TF-630*180F-Y TF-1800*180F-Y TF-1000*180F-Y 12



All products support customization, OME production.
