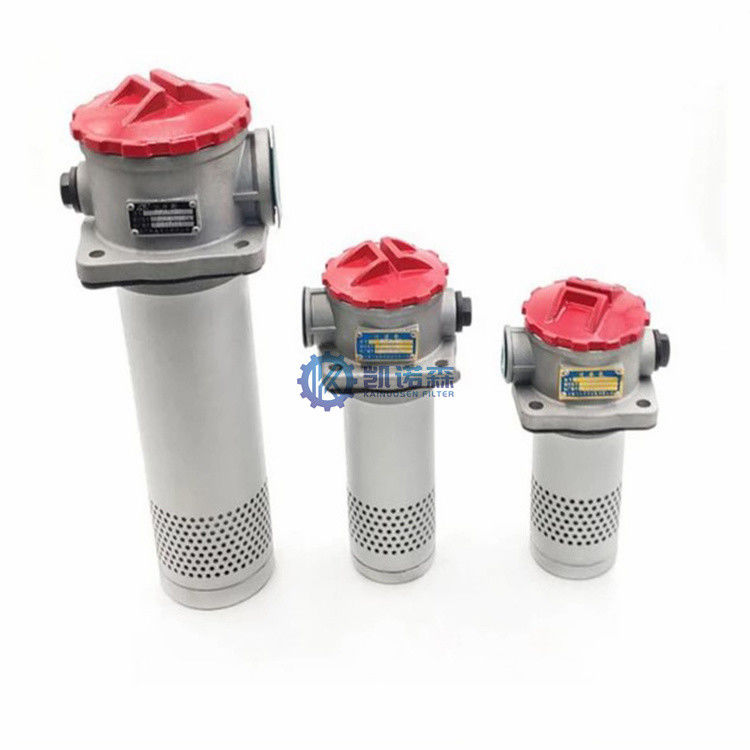

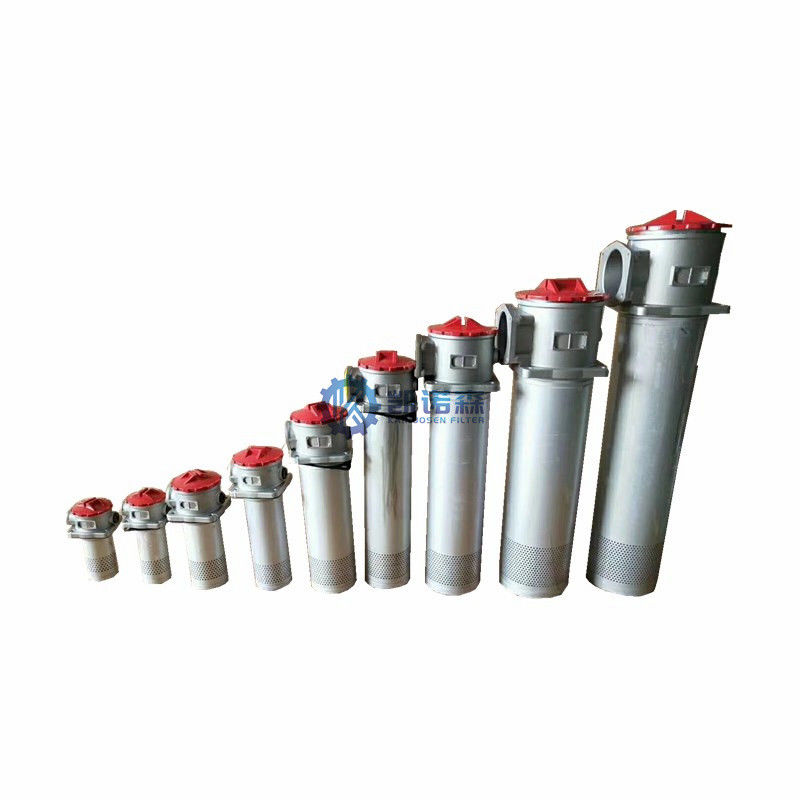

ISO Hydraulic Tank Return Filter RFA-1000*3F-C RFA-800*3F-Y

ISO Hydraulic Tank Return Filter RFA-1000*3F-C RFA-800*3F-Y

  • High Light

    Hydraulic Tank Return Filter RFA-1000*3F-C


    ISO Hydraulic Tank Return Filter


    RFA-800*3F-Y hydraulic tank filter

  • Package
    As Requested
  • Port
  • Guarantee
    3 Months
  • Sample
    Provide Sample
  • After-sales Service
    Online Support
  • Transport Mode
    Sea, Air,Road
  • Appliion Object
  • Customization
    Support Customization
  • Filtration Accuracy
  • Place of Origin
  • Brand Name
  • Model Number
    RFA-25*3L-C;RFA-40*3L-C;RFA-63*3L-C;RFA-100*3L-C;RFA-160*3L-C;RFA-250*3F-C;RFA-400*3F-C;RFA-630*3F-C;RFA-800*3F-C;RFA-1000*3F-C; RFA-25*3L-Y;RFA-40*3L-Y;RFA-63*3L-Y;RFA-100*3L-Y;RFA-160*3L-Y;RFA-250*3F-Y;RFA-400*3F-Y;RFA-630*3F-Y;RFA-800*3F-Y;RFA-1000*3F-
  • Minimum Order Quantity
    1 piece
  • Price
  • Packaging Details
  • Delivery Time
    3-15 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 pcs day

ISO Hydraulic Tank Return Filter RFA-1000*3F-C RFA-800*3F-Y

















This kind of filter can be used in hydraulic system for fine filtration. It can be
installed on the cover of the tank. The filter head should be out of the tank and the
filter bowl should immerse in the oil. The inlet port has threaded and flanged
connections. The filter has indior and by pass valve. When the dirt accumulates
in the filter element or the temperature of the system is too low, and the oil inlet
pressure reaches 0.35MPa, the indior will give signals showing that the filter
element should be cleaned, changed or raise the temperature. If no service is done
and as the pressure reaches to 0.4MPa, the by pass valve will open automatically
to keep the hydraulic system safe. It is easy to change filter element and to inject
the oil to the tank: open the filter cover, the filter element could be changed or the
oil can be injected into tank. Two oil ports at filter head which are M18X1.5, the
indior can be installed at any part and they can filter some oil which may return
to the tank.The filter has fluid diffuse. The fluid diffuser is at bottom of the filter and
can help the medium flow stably to the tank and avoid the air reentering. The filter
element is made of glass fiber, so it has high filtration accuracy,low initial pressure
loss, high dirt-holding capacity and so on. Filter radio β3, 5, 10, 20≥200,filter
efficiency n≥99.5%,and fit the ISO standard.
Product Information
Material High quality carbon steel;Stainless steel;Glass fiber
Scope of appliion Mines, metallurgy, petroleum, railways, machinery, chemicals, textiles, cement, power plants, meters
End cover material High quality carbon steel;Stainless steel


ISO Hydraulic Tank Return Filter RFA-1000*3F-C RFA-800*3F-Y 0ISO Hydraulic Tank Return Filter RFA-1000*3F-C RFA-800*3F-Y 1

ISO Hydraulic Tank Return Filter RFA-1000*3F-C RFA-800*3F-Y 2ISO Hydraulic Tank Return Filter RFA-1000*3F-C RFA-800*3F-Y 3


Company Profile

Kainuosen Environmental Technoiogy (Langfang) Co.,Ltd. Founded in 1995,The production base is loed in the North China Industrial Zone.We are loed in the economic coverage areas of Beijing, Tianjin, and Hebei, close to sea ports such as Tianjin Port, Qingdao Port, Weihai Port, and Qinhuangdao Port.It is only 15 kilometers away from Beijing Daxing International Airport, with superior geographical loion and convenient transportation.


Our company is a comprehensive high-tech enterprise integrating R&D, design, production, maintenance, sales and after-sales service. It is based in China and serves the world.


Our company produces all kinds of filter elements, cartridges and filters used in machinery, automobiles, ships, steel mills, power plants, mines, pumps, compressors, air compressors, dust treatment, water treatment, etc.


Products include air filters, oil filters, fuel filters, hydraulic oil filters, oil and gas separation filters, oil-water separation filters, coalescing separation filters, industrial air filters, dust filters, stainless steel filters, vacuum pump filters , Oil filter, concrete mixing plant large pulse dust filter, dust filter cartridge and other types, thousands of different specifiions series of filters, instead of brand filters, and can be customized according to customer requirements, support OME processing and production.


Focus on creating a filter brand and commit to the future of clean industry. We have a large number of technical elites, and we represent quality, focus and integrity. We are a supplier of industrial filtration solutions. We are Kainuoson.


ISO Hydraulic Tank Return Filter RFA-1000*3F-C RFA-800*3F-Y 4

Our Factory

ISO Hydraulic Tank Return Filter RFA-1000*3F-C RFA-800*3F-Y 5ISO Hydraulic Tank Return Filter RFA-1000*3F-C RFA-800*3F-Y 6

Packing & Delivery

ISO Hydraulic Tank Return Filter RFA-1000*3F-C RFA-800*3F-Y 7ISO Hydraulic Tank Return Filter RFA-1000*3F-C RFA-800*3F-Y 8


All products support customization, OME production.
