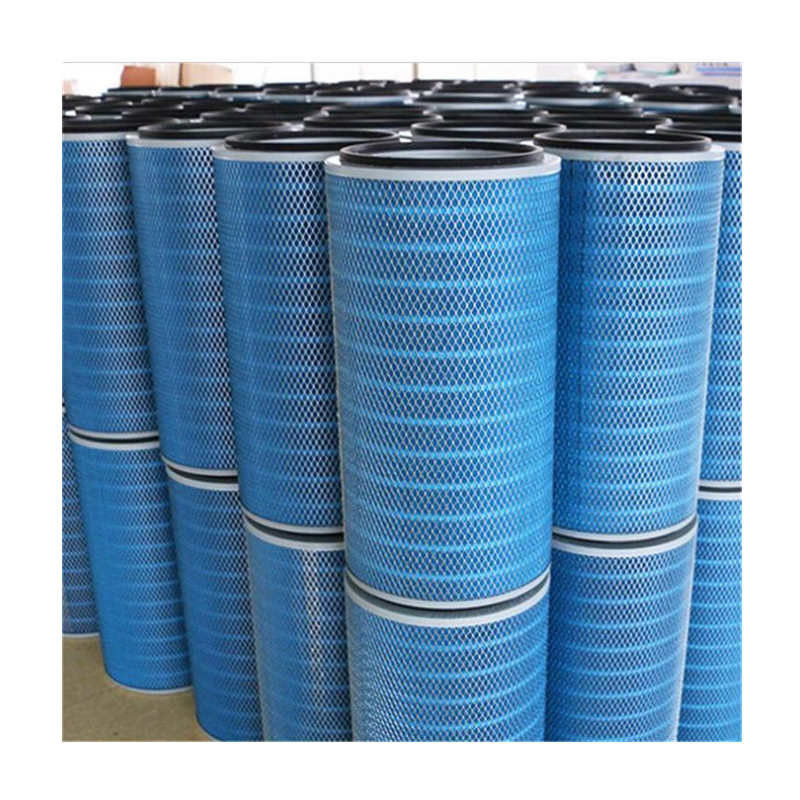

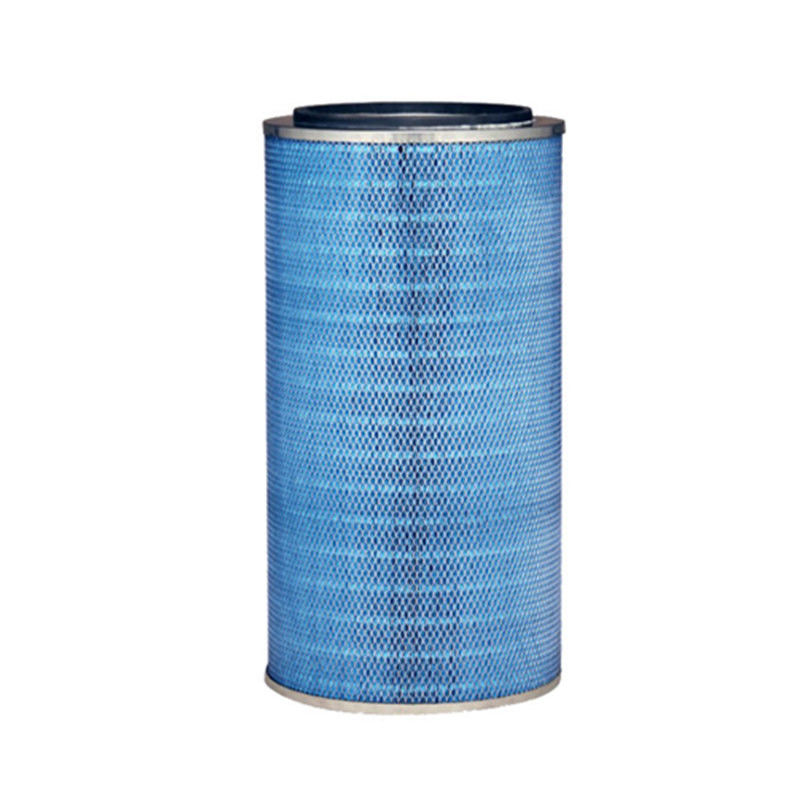

Ptfe Membrane Dust Extractor Filter Cartridges P030904 P030915

PTFE Membrane Industrial Air Filter P030904 P030915 Dust Extractor Filter Cartridges


1 air filter element
The selected air filter element must match the power, economy and reliability of the original engine.
(1) Rated air intake
The air chlorine flow in the technical parameters of the filter element shall be greater than the rated air intake of the matched engine.
(2) Filter material
There are requirements for the thickness, tension resistance, original air inlet resistance and filtration accuracy of the filter material. Imported diesel oil requires air filtration accuracy of 5 μ m. Domestic diesel engines shall also be less than 20 μ m. The filtering precision of high-efficiency filter paper is 2 μ m. Ordinary imported filter paper is 30 μ m. While the domestic filter paper is only 80 μ m.

(3) Filter element performance test
① The flow resistance (pressure drop) test measures the pressure loss of air flow (flow resistance or flow pressure chamber curve).
② The original filter efficiency test can calculate the dust collection efficiency of the filter element, and the dust reduction rate of the normal filter element should be more than 99%.
③ Dust storage capacity test and cumulative efficiency test: too much dust in the filter element will cause blockage and increase the air inlet resistance. When the engine power is reduced by 5% or the fuel consumption is increased by 5%, the intake resistance is a limit value. When this value is reached, the filter element must be cleaned or replaced. During the test, the dust accumulation weight when the air inlet resistance or pressure drop reaches 7-46kpa is the dust storage capacity of the filter element, and the filtration efficiency during the test is the cumulative efficiency.
④ The pressure difference at the inlet and outlet when the air volume passes through the filter element when the air intake resistance 9 of the original air intake resistance test is rated) shall not exceed 3.2kpa, and the power will decrease and the engine will emit black smoke.

The dust collector on the top of the cement tank is mainly used to collect dust of various powdery substances in the silo, and the dust collector on the top of the cement tank is similar to this. The bin top dust remover is a kind of dust removal equipment with manual ash removal structure. It is widely used in mining, metallurgy, building materials, machinery, chemical industry, grain processing and other industrial and mining enterprises to filter fine, non fibrous dry dust in the gas or to recover dry powder in the process flow.
The bin top dust remover is a round removable metal filter cartridge. There are 14 embedded circular holes on the bottom plate. It is equipped with 14 filter elements, which are fastened to the hanger of a vibrator at the upper end. It vibrates regularly to make the dust retained by the filter elements fall in the bin.

Dust filter cartridge products can provide various industries with air filtration solutions suitable for different types of dust, including abrasive, toxic and explosive dust.

It is suitable for dust filtering equipment in various industries such as cement, metallurgy, aluminum industry, food, wood processing, chemical industry, powder coating, plasma/laser cutting, sandblasting, textile, welding and casting. In addition, we also supply customized filtration products and provide on-site technical support.

The filter cartridge is used as the filter element of the pulse jet dust collector. According to the installation method, the filter cartridge can be divided into oblique insertion type, side-mounted type, hoisting type, top-mounted type and bottom-mounted type.

Filter cartridges can be divided into long fiber polyester filter cartridges, composite fiber filter cartridges, PTFE coated filter cartridges, anti-static filter cartridges, flame retardant filter cartridges, nano filter cartridges, etc.

FAQ

1. who are we?
We are based in Hebei, China, start from 2012,sell to Domestic Market(40.00%),Africa(20.00%),North America(10.00%),Eastern Europe(10.00%),South America(8.00%),Southeast Asia(7.00%),Eastern Asia(3.00%),Western Europe(2.00%). There are total about 25 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Filter element,Hydraulic filter,Dust removal equipment,Dust filter,Dust filter cartridge

4. why should you buy from us not from other suppliers?
Our company produces various filter elements, filter cartridges and filters for machinery, ships, steel plants, power plants, compressors, air compressors, dust treatment, etc., and can be customized according to customer requirements.

5. what services can we provide?
We have a complete range of products and can provide you with the filters you need, and can be customized according to your requirements.

Our factory

Appliion field
1. In the machine tool industry, 85%of the machine tool transmission system uses hydraulic transmission and control. Such as grinding machines, milling machines, planes, pulled beds, pressure machines, cutting beds, and combined machine tools.
2. In the metallurgical industry, the control system of the electric furnace control system, the control system of the steel rolling machine, the flat furnace installation, the turntable control, the blast furnace control, the band bias and the constant tension device all use hydraulic technology.
3. In engineering machinery, hydraulic transmission is generally used, such as excavators, tire loaders, car cranes, crawler bulldozers, tires, and self -propelled tires, flat -ground machines and vibration rollers.
4. In agricultural machinery, hydraulic technology is also widely used, such as joint harvesters, tractors and plows.
5. In the automotive industry, hydraulic off -road vehicles, hydraulic downturn cars, hydraulic high -altitude operating vehicles and fire trucks all use hydraulic technology.
6. In the light textile industry, hydraulic technology uses plastic injection molding machines, rubber sulfids, papermaking machines, printing machines and textile machines.
