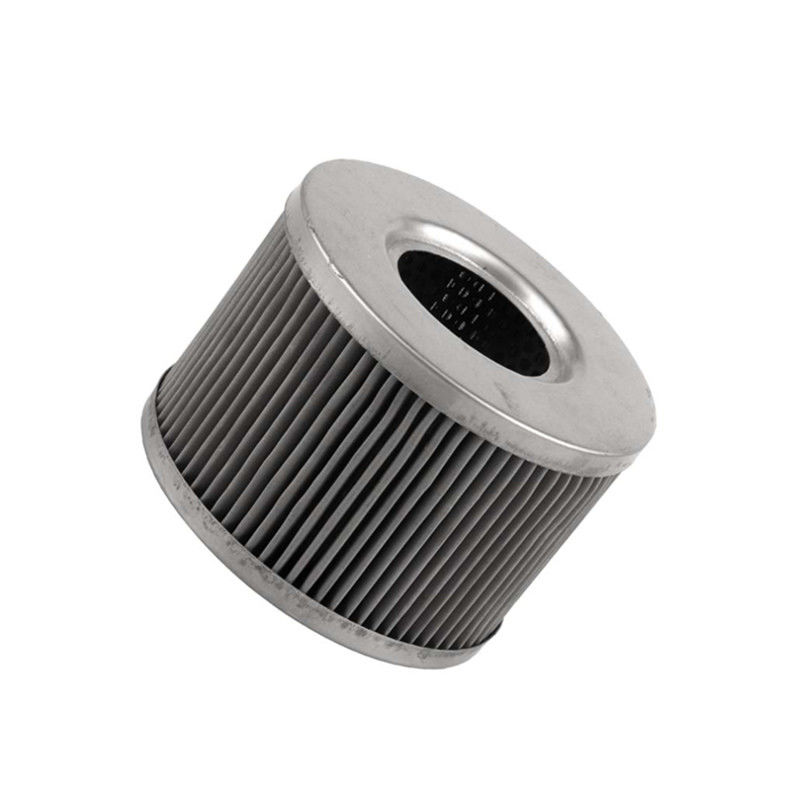

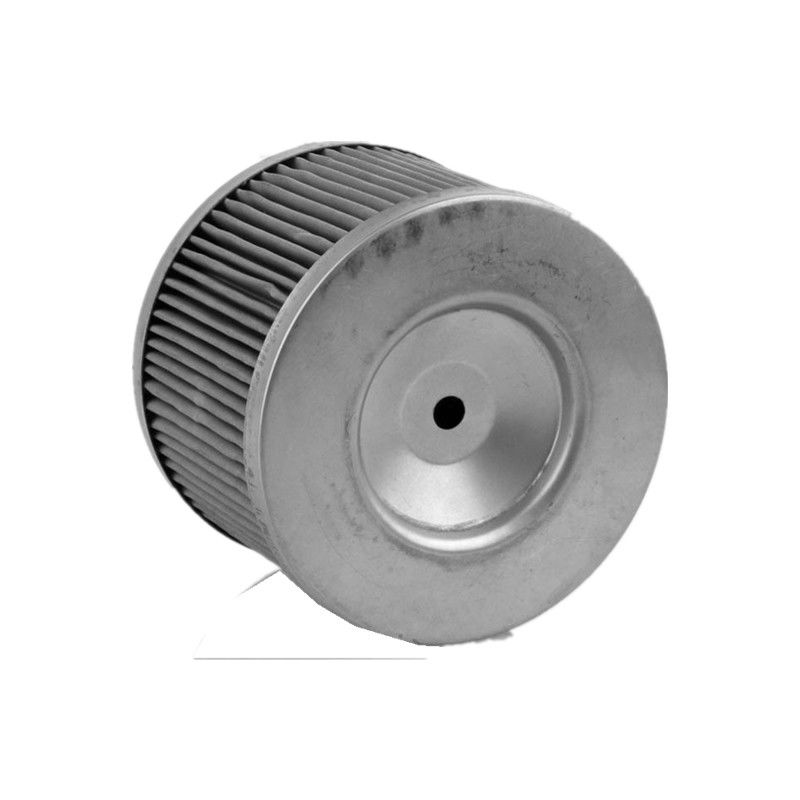

Replacement Taisei Kogyo P-G-UL-08A-50UW Stainless Steel Wire Mesh Pleated Hydraulic Oil Filter
Product Information |
|
Material | copper powder, titanium powder, Stainless steel Powder |
Scope of appliion |
Petrochemical and oilfield pipeline filtration; |
Structure & Size | tubular, plate, sheet, rod, disc, ring, the cone and plate and strip is available. |
Filtration rating | 0.5-100μm accuracy |
Main filter media of pleated filter elements are stainless steel sintered fiber web and stainless steel weaving wire mesh.
Stainless steel sintered fiber web is a kind of multipore deep filter media, sintered with stainless steel fiber at the high temperature.The filter elements enjoy the advantage of high porosity, large filter area and good dirt holding capacity, and can also be used repeatly after chemical cleaning.
Stainless steel weaving wire cloth is weaved with stainless steel wire. These filter elements have such characteristics of good strength fastness, easy cleaning, high temperature resistance, low cost.
Appliion:Products are widely used in petrolum, chemical, chemical fiber, aviation, aerospace, nuclear industry, pharmaceutical, metallurgy, electric power, water treatment, food and beverage, coal chemical and other industries.
Effective Filtration Area(per 10" length)
Pleated cartridge:1.40ft2(0.13m2)
Cylindrical cartridge:0.55ft2(0.05m2)
Gaskets and o-rings:
EPDM as standard, Nitrile, PTFE, silicone, Viton and PTFE coated viton avaliable on request or by process selection.
Cartridge End Fittings:
226 Fitting, 222Fitting, DOE , SOE, Thread 1",1/2"NPT and so on.
Feature
It is sintered in high temperature by bronze powder or copper powder or titanium powder or Stainless steel Powder, formed by isostatic pressing, molding, extrusion molding. It has good permeability filtration performance and high filtration precision, and a certain strength and toughness, can be used under the high temperature of 300 ℃. It is mainly used in purifiion and filtration of various medium or industrial mufflers, it can be manufactured filter element, filter leaf, muffler element on request.
Appliion
It is mainly applied in the basic industries such as petroleum, chemical industry, environmental protection, as the filter material, porous electrode materials, sound-absorbing materials, damping materials, divergent cooling material, alyst and alytic materials, antifreeze and cushioning material.
All products support customization, OME production.
It is widely used in environmental protection, petroleum, natural gas, chemical industry, environmental detection, instrumentation, pharmaceutical equipment and other fields. There are tens of thousands of product sizes and types to choose from, and a variety of stainless steel filter products with complex structures can also be customized and processed according to needs.
It has high mechanical strength and compressive strength, and can exert uniform surface filtration performance for filtration accuracy of 1-300μm. It can be used for continuous filtration from -200℃ to 500℃. Because of the surface filter structure with countercurrent cleaning effect, cleaning is very simple .
It has a variety of porosity (28%-50%), pore size (4u-160u) and filtration accuracy (0.2um-100um). The pores are criss-crossed, resistant to high temperature and rapid heat. Corrosion resistance. Suitable for a variety of acid, alkali and other corrosive media. The stainless steel filter element is resistant to general acid, alkali and organic corrosion. It is especially suitable for sulfur-containing gas filtration. High strength and good toughness. Suitable for high pressure environments. Weldable, Easy to load and unload. Stable hole shape and uniform distribution to ensure stable filtration performance. Good regeneration performance. After repeated cleaning and regeneration, the filtration performance is restored to more than 90%.
Technical Index of Stainless Steel Sintered Fiber Web
Absolute Filter Rating (μ) |
Bubble Piont Pressure (Pa) |
Average Air Permeability (l/dm2/min) |
Thichness (mm) |
Weight (g/m2) |
Porosity (%) |
Dirt Holding Capacity (mg/cm2) |
3 | 12300 | 9 | 0.35 | 975 | 65 | 6.40 |
5 | 7600 | 34 | 0.34 | 600 | 78 | 5.47 |
7 | 5045 | 57 | 0.27 | 600 | 72 | 6.47 |
10 | 3700 | 100 | 0.32 | 600 | 77 | 7.56 |
15 | 2470 | 175 | 0.37 | 600 | 80 | 7.92 |
20 | 1850 | 255 | 0.49 | 750 | 81 | 12.44 |
25 | 1480 | 320 | 0.61 | 1050 | 79 | 19.38 |
30 | 1235 | 455 | 0.63 | 1050 | 79 | 23.07 |
40 | 925 | 580 | 0.66 | 1200 | 77 | 25.96 |
60 | 630 | 1000 | 0.70 | 750 | 87 | 33.97 |
Company Profile
Kainuosen Environmental Technoiogy (Langfang) Co.,Ltd. Founded in 1995,The production base is loed in the North China Industrial Zone.We are loed in the economic coverage areas of Beijing, Tianjin, and Hebei, close to sea ports such as Tianjin Port, Qingdao Port, Weihai Port, and Qinhuangdao Port.It is only 15 kilometers away from Beijing Daxing International Airport, with superior geographical loion and convenient transportation.
Our company is a comprehensive high-tech enterprise integrating R&D, design, production, maintenance, sales and after-sales service. It is based in China and serves the world.
Our company produces all kinds of filter elements, cartridges and filters used in machinery, automobiles, ships, steel mills, power plants, mines, pumps, compressors, air compressors, dust treatment, water treatment, etc.
Products include air filters, oil filters, fuel filters, hydraulic oil filters, oil and gas separation filters, oil-water separation filters, coalescing separation filters, industrial air filters, dust filters, stainless steel filters, vacuum pump filters , Oil filter, concrete mixing plant large pulse dust filter, dust filter cartridge and other types, thousands of different specifiions series of filters, instead of brand filters, and can be customized according to customer requirements, support OME processing and production.
Focus on creating a filter brand and commit to the future of clean industry. We have a large number of technical elites, and we represent quality, focus and integrity. We are a supplier of industrial filtration solutions. We are Kainuoson.
Our Factory
Packing & Delivery
FAQ
1. Who are we?
We are loed in Hebei, China. We have 20 years of production experience. Since 2015, we have sold to the domestic market (40.00%), Africa (20.00%), North America (10.00%), Eastern Europe (10.00%), South America (8.00%) , Southeast Asia (7.00%), East Asia (3.00%), Western Europe (2.00%). There are about 11-50 people in our office.
2. How do we guarantee the quality?
It is always a pre-production sample before mass production;
Always perform a final inspection before shipment;
3. What can you buy from us?
Filter element, hydraulic filter, dust removal equipment, industrial air filter, dust filter cartridge, natural gas filter, oil-water separation filter, oil-gas separation filter, oil filter, fuel filter, etc.
4. Why buy from us instead of other suppliers?
Our company produces various filter elements, filter elements, filters for machinery, ships, steel plants, power plants, compressors, air compressors, dust treatment, etc., and can be customized according to customer requirements. Based in China, service
5. What services can we provide?
We provide after-sales service and technical support, we can customize various types of filters for you, or OME processing.
