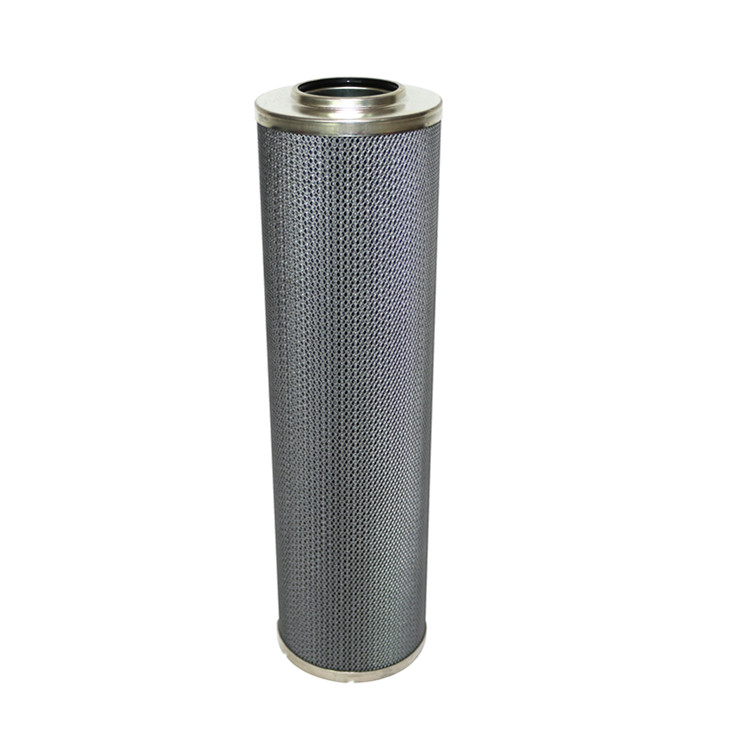

Port Machinery Crane Heavy Equipment Filters Hydraulic

Port machinery filter element Crane filter element Crane filter element Hydraulic filter Heavy Equipment Filters

Port machinery filter element Crane filter element Crane filter element Heavy Equipment Filters Hydraulic filter

Main data of microporous (filter element) filter (1) Flow: 0.2~50t/h (series specifiion). (2) Filter element length: 10 ″, 20 ″, 30 ″, 40 ″. (3) Filtering precision: 0.1 μ m,0.22 μ m,0.45 μ m,1.0 μ m,3.0 μ m～60 μ m. (4) Working temperature: 5~85 ℃. (5) Working pressure of filter: ＜ 0.5MPa. (6) External surface treatment of filter: mirror polishing, matt, sand blasting. (7) Type of filter element socket: the filter element socket of single core filter is snap in type; The filter element sockets of the multi-core filter are plug-in type and flat compression type. (8) Filter inlet and outlet interfaces: quick installation chuck, SMS round thread, flange, inch pipe thread and other interfaces. (9) Filter element material: polypropylene membrane (PP) filter element, polytetrafluoroethylene membrane (PTFE) filter element, cellulose acetate membrane (CN-CA) filter element; Hydrophobic (applicable to gas) and hydrophilic (applicable to liquid) filter elements can be selected as required. (Refer to our filter element technical performance parameter table for filter element selection).
2. Structure and function of stainless steel microporous filter This series of stainless steel microporous filter is composed of a foldable microporous membrane filter element and a stainless steel outer cylinder. It is equipped with a single core or multi-core filter element. The filter cylinder is connected by a quick mounting clamp or a quick opening ring bolt. It is very convenient to load and unload the filter element and clean the filter. The inner surface of the filter shall be subject to mirror polishing (roughness Ra ≤ 0.28 μ m) , no sanitary dead angle, in line with "FDA" and "GMP" specifiions
3. Use method of stainless steel microporous filter (1) Thoroughly clean the filter and filter connecting parts, and correctly install the filter element and housing. (2) Before starting, first check whether the booster pump rotates smoothly, whether it is connected tightly, and whether all valves are closed. (3) Before starting the machine, slowly open the liquid inlet valve, and then open the liquid outlet valve for normal filtration. (4) If the filter pressure difference is found to be greater than 0.1Mpa or the flow rate drops significantly, it indies that most of the filter element aperture has been blocked. It is recommended that the customer clean or replace the filter element.

Company Profile

Kainuosen Environmental Technoiogy (Langfang) Co.,Ltd. Founded in 1995,The production base is loed in the North China Industrial Zone.We are loed in the economic coverage areas of Beijing, Tianjin, and Hebei, close to sea ports such as Tianjin Port, Qingdao Port, Weihai Port, and Qinhuangdao Port.It is only 15 kilometers away from Beijing Daxing International Airport, with superior geographical loion and convenient transportation.

Our company is a comprehensive high-tech enterprise integrating R&D, design, production, maintenance, sales and after-sales service. It is based in China and serves the world.

Our company produces all kinds of filter elements, cartridges and filters used in machinery, automobiles, ships, steel mills, power plants, mines, pumps, compressors, air compressors, dust treatment, water treatment, etc.

Products include air filters, oil filters, fuel filters, hydraulic oil filters, oil and gas separation filters, oil-water separation filters, coalescing separation filters, industrial air filters, dust filters, stainless steel filters, vacuum pump filters , Oil filter, concrete mixing plant large pulse dust filter, dust filter cartridge and other types, thousands of different specifiions series of filters, instead of brand filters, and can be customized according to customer requirements, support OME processing and production.

Focus on creating a filter brand and commit to the future of clean industry. We have a large number of technical elites, and we represent quality, focus and integrity. We are a supplier of industrial filtration solutions. We are Kainuoson.

Our Factory

Packing & Delivery

FAQ

1. who are we?
We are based in Hebei, China, start from 2018,sell to Domestic Market(40.00%),Africa(20.00%),North America(10.00%),Eastern Europe(10.00%),South America(8.00%),Southeast Asia(7.00%),Eastern Asia(3.00%),Western Europe(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Filter element,Hydraulic filter,Dust removal equipment,Dust filter,Dust filter cartridge

4. why should you buy from us not from other suppliers?
Our company produces various filter elements, filter cartridges and filters for machinery, ships, steel plants, power plants, compressors, air compressors, dust treatment, etc., and can be customized according to customer requirements. Based on China, serv

5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
